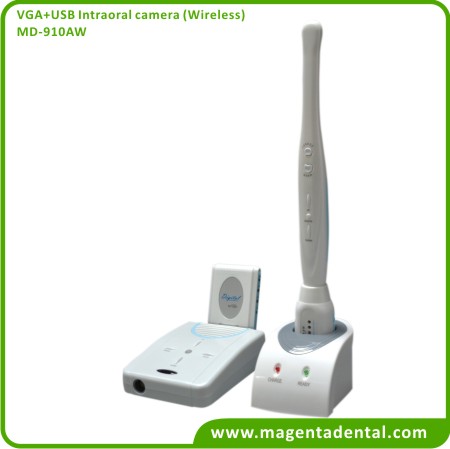

MD-910AW wireless 1.3 mega pixels CCD VGA+USB oral camera

Time:2017-06-07 15:17source:Wireless dental camera writer:Magenta click:
1.3 Mega pixels wireless dental intra-oral camera

 wireless dental cameras factory
The picture of dental intra-oral camera cordless

Wireless dental camera features:
*New Nice design
*Super-wide automatically adjusting-focus lens
*Handpiece holder with automatic power-off function
*With USB/VGA output function.
*One and quad image can change easily.
*It can be quickly deleted image, re-captured, enlarge function and it also can be saved 28 PCS full picture or 112 pcs quad images.
*Can work with foot switch(option).
*With pedestal charger, double capture button, easy operation.

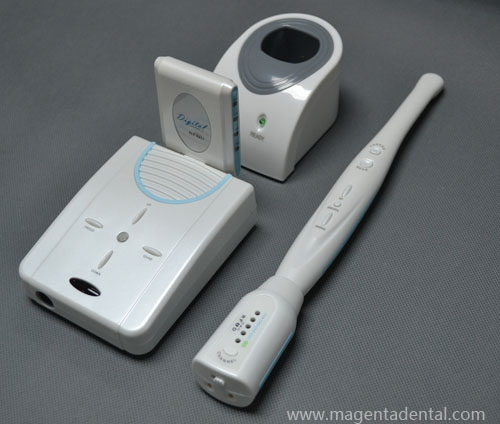

 The photo of MD-910 handpiece
The photo of oral camera handpiece

The docking station of the MD-910A dental camera
The photo of plugs of the MD-910AW intraoral camera dental

MD-910AW Wireless vga intraoral camera to lcd monitor specitifcation:
Image Sensor: 1/4” Sony CCD
Image Resolution: 1.3 Mega Pixels
Output plug: USB and VGA
Lamp: 6 pcs white LED(5600K)
Accumulation Point: 3mm~50mm
Photographing Visual angle:105
Signal format:NTSC/PAL(option)
Channel selection :4 channels
Battery: 350 mA Lithium battery
(Could work about 35mins continuously)
Frequency: 5.8GHz
Distance : Over 10m

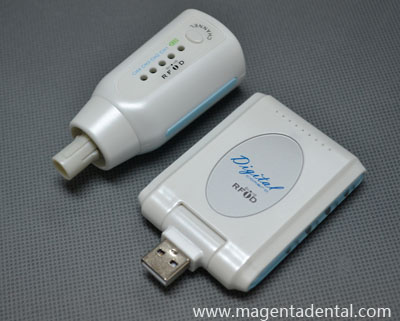

Wireless launcher and receiver of the MD-910A dental camera
The picture Launcher and receiver of the MD-910AW cordless vga dental camera for dental chair and pc

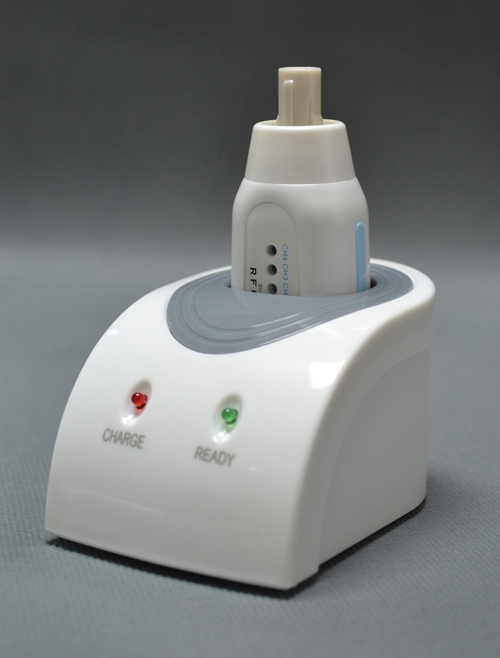

The charger of the wireless launcher

The Launcher battery charger

MD-910AW cordless dental endoscope Accessories:
Camera handpiece * 1 PC;
Docking station *1 PC;
Wireless launcher * 1PC;
Wireless receiver * 1PC;
Camera sleeves * 50 pcs;
Handpiece cable * 1 PC;
USB cable * 1 PC;
VGA cable *1 PC;
Docking station holder * 1PC;
Screw * 4 pcs
Remote control * 1 PC;
Adaptor * 2 PCS;
Pedestal charger * 1 PC;
Software & driver CD * 1PC;
User manual *1 PC;
Remote control * 1PC

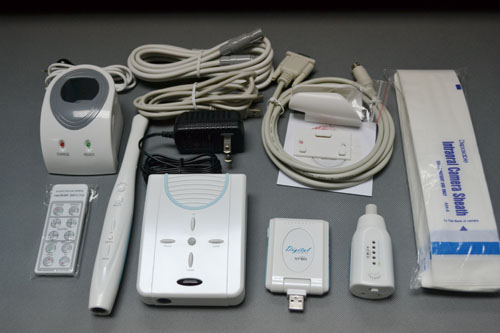

The accessories of the Intraoral Camera devices
The picture of the oral camera wireless accessories

1.45 kgs/set
Box size:  27.2*20.7*8.8cm
Carton size: 45*31*47 cm
10 sets /carton
Gross weight: 16KGS/carton
