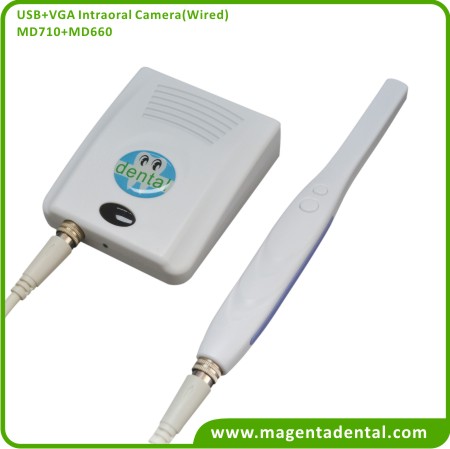

MD710+MD660[Wired] VGA+USB CCD dental camera

Time:2014-11-04 17:11source:未知 writer:admin click:
1.3 Mega pixels CCD dental intra-oral camera with USB+VGA plug
Model: MD710+MD660
MD710 dental camera handpiece
The dental camera handpiece

Dental oral camera Features:
*Pixel:1.3 mega
*High brightness images
*Simple operation and installation
*Light and easy mobility
*Equipped with anti-fog, non-spherical lens
*Super-wide automatically adjusting-focus lens
*Handpiece holder with automatic power-off function
*With USB and VGA output function.
*It can be quickly deleted image, re-captured, enlarge function and it also can be saved 4x28 PCS picture totally.
*For both of freeze device and handpiece are with quick-connector function.
*It can be divided 4 images on the screen, and be switched very easily to each other between 1 image and 4 images.
*It can be connected with external infrared sensor without any failure.
*With specific remote control.

 The docking station of the dental camera
The docking station of intra-oral camera

Dental chair camera Specification
*Image sensor: 1/4" sony CCD
*Image resolution: 1.3 mega pixels
*Lamp: 6 pcs white LED
*Accumulation point: 5mm~50mm
*photographing visual angle: 70 degree
*:Cable length: 2m
*Power input: Handpiece: DC 5V (250mA)
*Freeze device: DC 5V, 1500mA
*Compatible with Windows XP SP2/Windows Vista/Wins 7.


  dental oral camera accessories
The accessories of the dental camera device

MD710+MD660 dental oral camera’s accessories.
Camera handpiece * 1 PC;
Docking station *1 PC;
Camera sleeves * 50 pcs;
Handpiece cable * 1 PC;
USB cable * 1 PC;
VGA cable*1 PC;
Camera holder * 1 PC
Docking station holder * 1PC;
 Adaptor * 1 PC;
 Screw * 4 pcs
 Remote control * 1 PC
 Software & driver CD * 1PC;
 User manual *1 PC;
